ZIBOO Kelvin Clips - LCR-P1 The Real Deal?
- Darren Walker
- 1 day ago
- 5 min read
When it comes to precise electrical measurements, the quality of your test leads and clips can make a significant difference. The ZIBOO Kelvin Clips - LCR-P1 have recently gained attention among electronics enthusiasts and professionals alike. But are they really worth the hype? This post takes a close look at the ZIBOO Kelvin Clips - LCR-P1 to help you decide if they live up to the hype!
What Are Kelvin Clips and Why Do They Matter?
Kelvin clips, also known as four-wire test clips, are designed to improve the accuracy of low-resistance measurements. Unlike standard test leads, Kelvin clips use separate pairs of wires for current and voltage, which helps eliminate the effect of lead resistance on the measurement.
This design is especially important when measuring components like resistors, inductors, and capacitors with very low values, where even a small error can lead to misleading results. The ZIBOO Kelvin Clips - LCR-P1 claim to provide this precision with a user-friendly design.
Solid construction and pro grade connectivity. These Kelvin clips fit perfectly with a wide range of LCR Test equipment.
What Makes a Meter Compatible with LCR Clips?
You can use those Kelvin clips only if your meter has four separate terminals labelled something like:
Hc / Hp (High current / High potential)
Lc / Lp (Low current / Low potential)
Or more generically:
Force+
Force–
Sense+
Sense–
Sometimes the connectors are banana jacks, sometimes 4-terminal clips, and sometimes BNC/Banana combos — but the key is that the meter supports true 4-wire (Kelvin) measurements.
If your meter only has 2 terminals (common on cheaper “component testers”), Kelvin clips won’t help.
🧪 LCR Meters That Do Support Kelvin Clips
Here are common meters where Kelvin (4-wire) leads like the Ziboo ones are useful and compatible:
📍 Bench / Lab-Grade LCR Meters
These are the ones where 4-wire measurement matters most:
Keysight E4980A / E4981AClassic lab LCR with 4-terminal fixtures.
GW-Instek LCR-6100 / LCR-8200 series Four-wire input terminals on front panel.
Rohde & Schwarz Hameg HM8118 / HM8123 Includes dedicated Kelvin ports.
BK Precision 879B / 8944-wire compatible — ideal for precision DCR and low-impedance parts.
🧰 Mid-Range / LCR Meters
These still support separate force/sense and will use Kelvin clips:
UNI-T UT6114-terminal interface for accurate low-ohm / inductor measurements.
Extech 380193 Front 4-wire terminals.
B&K Precision 889B Four-lead measurement.
Peak Atlas LCR series (some models) With 4-wire terminals (depends on specific unit).
Key Features of ZIBOO Kelvin Clips - LCR-P1
Before diving into performance, it’s useful to understand what the ZIBOO Kelvin Clips offer:
Four-wire connection: Separate current and voltage leads ensure accurate low-resistance measurements.
Strong spring clips: The clips are designed to grip components firmly without slipping.
Compact and lightweight: Easy to handle and suitable for tight spaces on circuit boards.
Durable build: Made with quality materials to withstand repeated use.
Compatibility: Works with most LCR meters and multimeters that support Kelvin testing.
These Kelvin clips are designed for both precision and convenience.
How Do They Perform in Real-World Testing?
To evaluate the ZIBOO Kelvin Clips - LCR-P1, several tests were conducted using a standard LCR meter and a variety of components, including low-value resistors and inductors.
Accuracy
The clips consistently delivered measurements within 0.1% of the known component values. This level of precision is critical for professionals working with sensitive circuits or calibration tasks.
Grip and Handling
The spring clips held components securely without damaging leads or PCB pads. Their compact size allowed easy access to small components, which is often a challenge with bulkier clips.
Durability
After multiple uses, the clips showed no signs of wear or loss of spring tension. The insulation on the leads remained intact, and the connectors fit snugly into the meter’s input jacks.
User Experience
Users reported that the clips were comfortable to use for extended periods. The color-coded leads helped avoid confusion during testing, and the overall design reduced hand fatigue.
Comparing ZIBOO Kelvin Clips - LCR-P1 to Other Options
The market offers several Kelvin clip options, ranging from budget models to premium brands. Here’s how the ZIBOO Kelvin Clips stack up:
| Feature | ZIBOO Kelvin Clips - LCR-P1 | Budget Clips | Premium Clips |
|-----------------------|-----------------------------|-----------------------|-----------------------|
| Accuracy | High (±0.1%) | Moderate (±1%) | Very High (±0.05%) |
| Build Quality | Solid | Basic | Excellent |
| Clip Strength | Strong | Weak | Strong |
| Price | Mid-range | Low | High |
| Ease of Use | User-friendly | Varies | User-friendly |
The ZIBOO Kelvin Clips offer a good balance of accuracy, build quality, and price, making them a strong contender for most users.
Practical Tips for Using Kelvin Clips Effectively
To get the most out of your Kelvin clips, keep these tips in mind:
Clean contact points: Ensure the component leads or PCB pads are clean for reliable contact.
Avoid excessive force: The clips grip firmly, but applying too much pressure can damage delicate components.
Use proper meter settings: Select the four-wire measurement mode on your LCR meter to benefit from the clips.

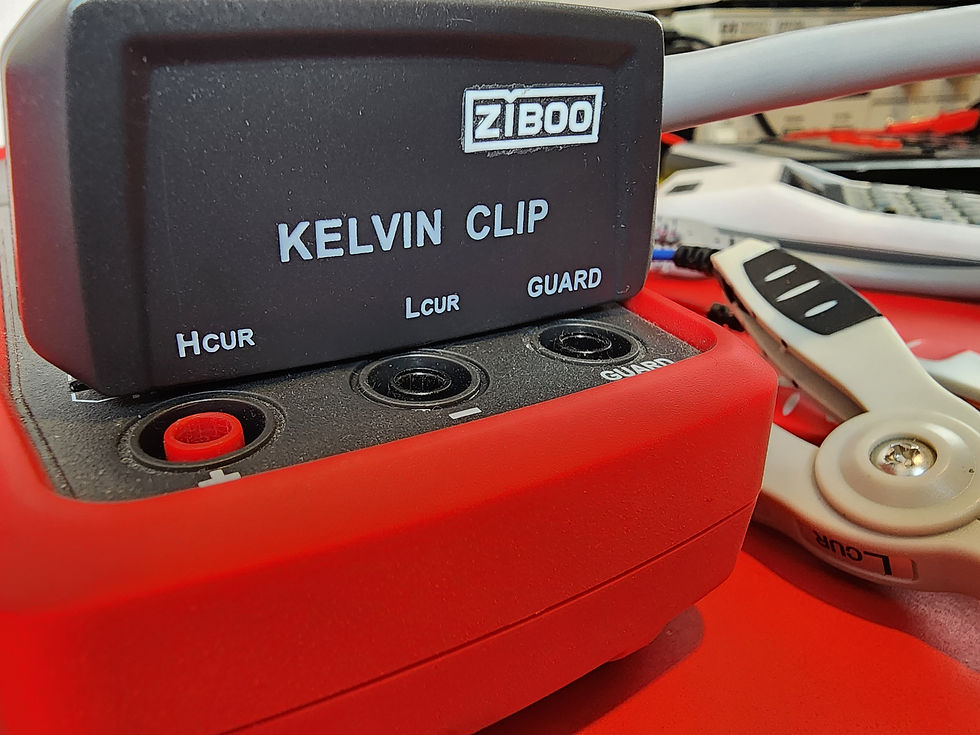

Lock & Load When inserting the clips into an LCR meter pay attention to the clip angles, insert and then swipe to the right to lock the Kelvins into place.
Store carefully: Protect the clips from dust and moisture to maintain performance over time.
Who Should Consider ZIBOO Kelvin Clips
These clips are ideal for:
Electronics hobbyists who want more accurate measurements.
Technicians working on low-resistance components.
Engineers performing calibration or quality control.
Anyone needing reliable, repeatable test connections.
If you frequently measure small resistances or work with sensitive components, these clips can improve your results.
Why You Need Ziboo LCR P1 Kelvin Clips
Depending on what you’re testing, these help you:
✅ Get accurate resistance measurements down to milliohms
✅ Reduce errors with low-impedance components
✅ Improve repeatability for professional or detailed work
✅ Avoid measurement errors caused by lead and contact resistance
For general hobby use or high-value resistors (10 Ω and above), standard probes may be fine. But for serious work — especially under ~1 Ω — Kelvin clips are strongly recommended.
Small / Low-Value Inductors (µH range)
If you're measuring:
1 µH – 100 µH
SMD inductors

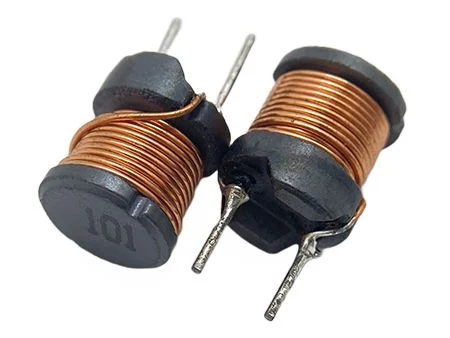

Small power inductors
Air-core coils
👉 Kelvin clips are really helpful.
Why? Because:
These inductors often have very low DC resistance (DCR).
Your test leads can easily add 0.1–0.3 Ω.
That distorts Q factor and DCR readings.
It reduces measurement repeatability.
If you care about:
Accurate DCR
Q factor
Comparing parts
🧲 Large Inductors / Transformers (mH range)
If you’re measuring:
1 mH+

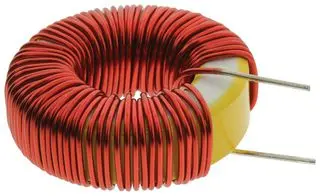

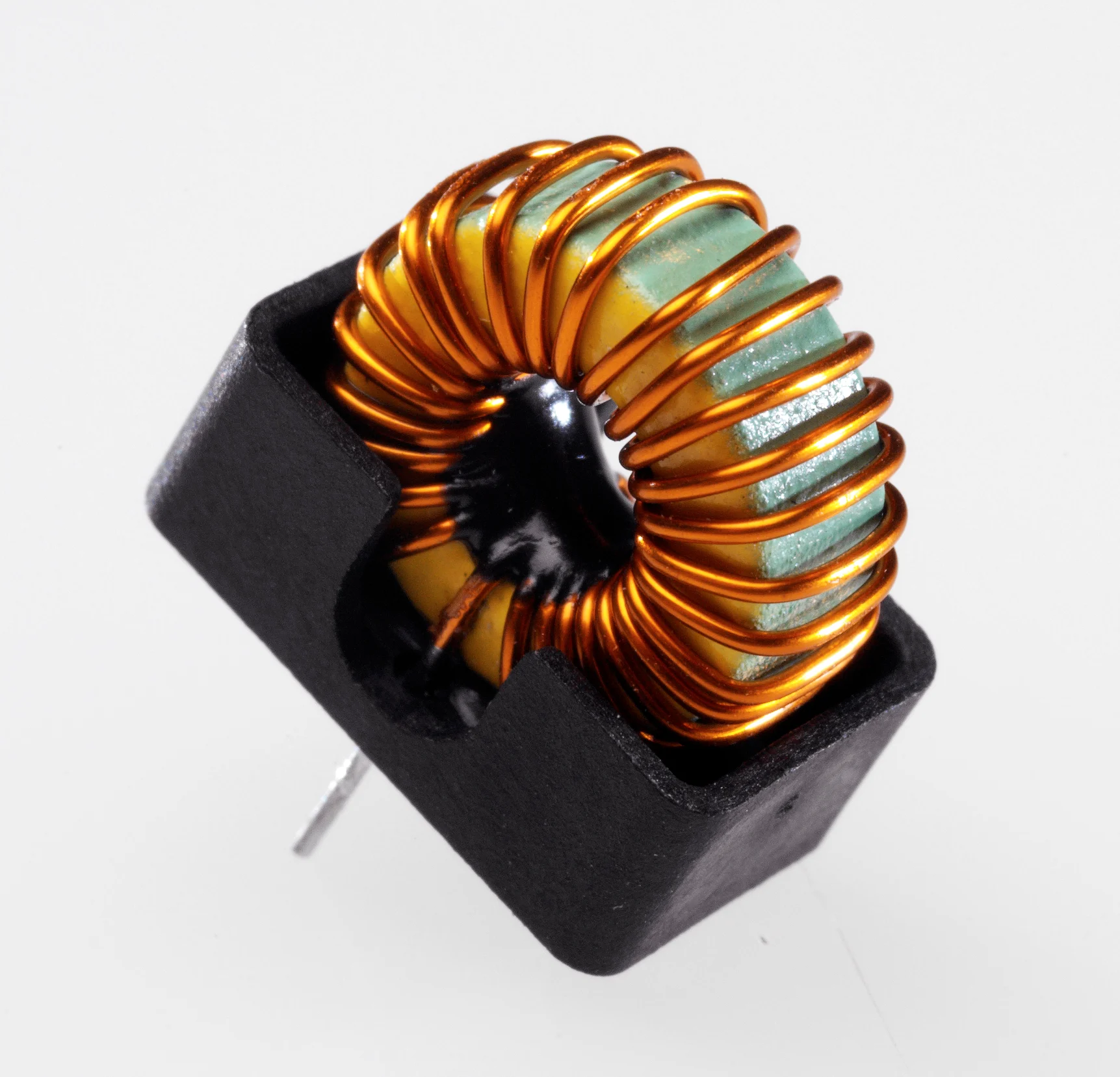

Big toroidal chokes

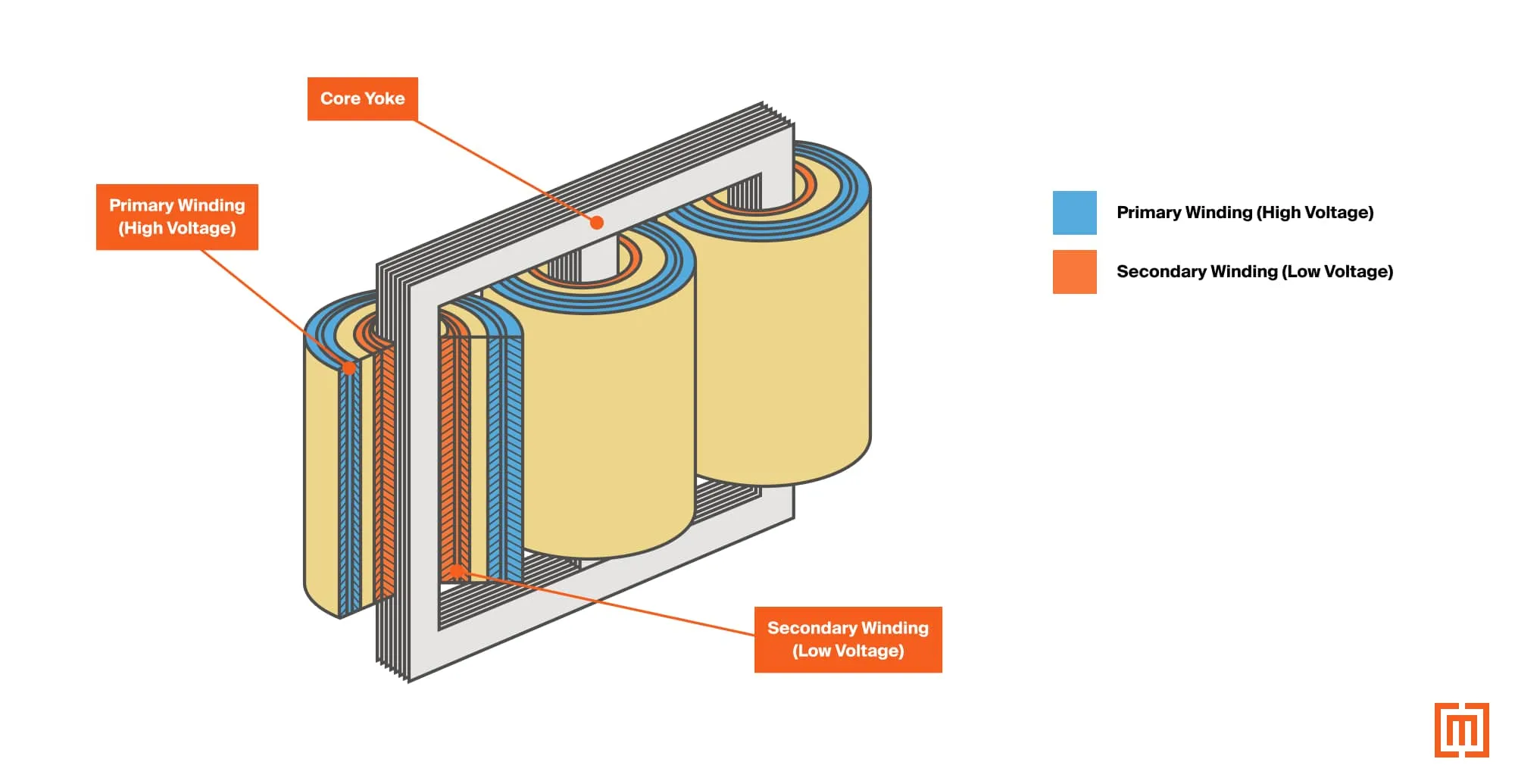

Transformers
👉 Kelvin clips are less critical for inductance value.
Why? Because:
Inductance measurement at 100 Hz / 1 kHz isn’t strongly affected by a few milliohms.
But DCR measurement still benefits.
Final Thoughts on ZIBOO Kelvin Clips - LCR-P1
The ZIBOO Kelvin Clips - LCR-P1 deliver on their promise of precise, reliable measurements. Their solid construction, ease of use, and accuracy make them a valuable tool for anyone serious about electrical testing. Priced right and offering solid performance along with wide compatability., these are my GO-TO Kelvin clips!
🧠 KEEP ON TESTING APPROVED!
Ziboo LCR P1 Kelvin clips = 4-wire test clips for LCR meters
They let your meter separate current vs voltage paths
This eliminates lead resistance errors
Very useful (or necessary) when measuring low impedance/low resistance
High quality build solid construction and firm connectivity
If you want to improve your measurement accuracy without breaking the bank, the ZIBOO Kelvin Clips - LCR-P1 are definitely a must have! Try them out and see how they enhance your testing workflow.
Check out my ZIBOO Kelvin Clips Review - KEEP ON TESTING!
