Maximizing Input Protection with the Klein Tools MM720

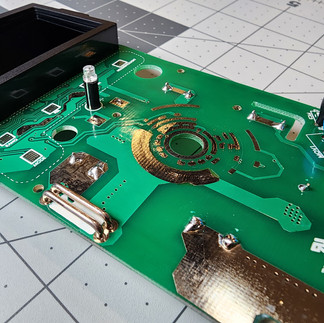

Further to my YouTube review on the KLEIN TOOLS MM720. When working with electrical systems, protecting your tools and yourself from unexpected voltage spikes or incorrect inputs is crucial. The Klein Tools MM720 multimeter offers a range of features designed to provide reliable input protection, ensuring safety and accuracy during measurements. This post explores how the MM720 maximizes input protection and why it stands out as a dependable tool for electricians and technicians. I've included a further teardown showing even more of the excellent input protection this capable multimeter offers.

Klein Tools MM720 multimeter input ports and dial settings

Understanding Input Protection in Multimeters

Input protection refers to the safety mechanisms built into a multimeter to prevent damage from incorrect or excessive voltage, current, or polarity during use. Without proper input protection, a multimeter can be damaged or even cause injury if exposed to unexpected electrical conditions.

The Klein Tools MM720 incorporates several layers of input protection, including:

• Fused inputs to prevent damage from overcurrent

• Overvoltage protection to handle voltage spikes safely

• Reverse polarity protection to avoid damage if leads are connected incorrectly

• Robust internal circuitry designed to withstand harsh electrical environments

These features work together to protect both the user and the device, making the MM720 a reliable choice for demanding electrical tasks.

Key Features of the Klein Tools MM720 Input Protection

The MM720 is designed with practical input protection features that address common risks faced by electricians:

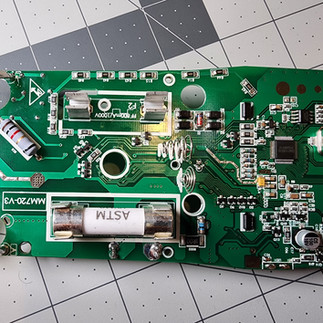

1. Fused Current Inputs

The MM720 includes fused inputs for measuring current, which means if the current exceeds the fuse rating, the fuse blows to protect the meter’s internal components. This prevents permanent damage and reduces repair costs.

• The fuse rating is carefully selected to balance protection and usability.

• Users can easily replace the fuse, extending the meter’s lifespan.




2. High Voltage Input Protection

The MM720 can safely measure voltages up to 600 volts AC/DC. It includes internal components that absorb voltage spikes, preventing damage from sudden surges or incorrect voltage ranges.

• This feature is essential when working in industrial or residential environments where voltage fluctuations occur.

• It helps maintain accurate readings even under challenging conditions.




3. Reverse Polarity Protection

Connecting test leads incorrectly can cause damage to some meters. The MM720’s design prevents harm from reverse polarity by using protective diodes and circuitry that block harmful current flow.

• This reduces the risk of user error causing costly damage.

• It also protects the meter’s internal electronics from stress.

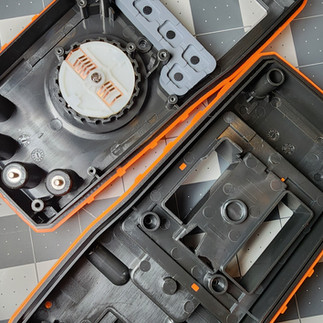

4. Durable Build and Insulation

The MM720’s casing and input jacks are built to withstand physical wear and provide electrical insulation. This reduces the chance of accidental shorts or shocks.

• The rugged design supports use in tough job sites.

• Insulated input jacks improve user safety.




Practical Benefits of Input Protection for Users

Input protection is not just a technical feature; it directly impacts the daily work of electricians and technicians. Here’s how:

• Safety: Prevents electric shocks and injuries caused by meter failure or incorrect use.

• Reliability: Ensures the meter continues to function accurately over time, even after accidental misuse.

• Cost Savings: Reduces repair and replacement costs by avoiding damage.

• Confidence: Allows users to focus on their work without worrying about damaging their tools.

For example, an electrician measuring current in a live circuit can trust the MM720’s fused inputs to protect the meter if the current unexpectedly spikes. Similarly, when testing voltage in an industrial panel, the high voltage protection guards against transient surges.

How to Maximize Input Protection When Using the MM720

Even with built-in protections, users can take steps to maximize safety and tool longevity:

• Select the correct measurement mode and range before connecting to a circuit.

• Inspect test leads and input jacks for damage or wear regularly.

• Avoid measuring current on voltage settings to prevent blowing fuses.

• Replace blown fuses promptly with the correct type specified by Klein Tools.

• Use the meter within its specified voltage and current limits.

• Store the meter properly to avoid physical damage.

Following these practices complements the MM720’s input protection features and ensures safe, accurate measurements.

Comparing the MM720’s Input Protection to Other Models

Many multimeters offer some level of input protection, but the MM720 stands out for its balance of features and affordability. Some higher-end meters provide more advanced protections, but they often come at a higher price point.

The MM720 offers:

• Comprehensive protection suitable for residential, commercial, and light industrial use.

• User-friendly design with clear input labeling and durable construction.

• A trusted brand reputation for quality and safety.




For electricians who need a reliable meter without overspending, the MM720 provides excellent input protection that meets most job site demands.

Real-World Example: Avoiding Damage with Input Protection

Consider a technician troubleshooting a faulty circuit in a commercial building. They accidentally connect the test leads to the current input while measuring voltage. On a meter without proper input protection, this mistake could cause internal damage or blow a fuse.

With the MM720, the fused input immediately interrupts the current flow, protecting the meter’s internal components. The technician notices the blown fuse, replaces it, and continues working without needing a new meter. This example shows how input protection saves time and money while keeping the user safe.

Final Thoughts on Input Protection and the Klein Tools MM720

The Klein Tools MM720 multimeter offers strong input protection features that make it a dependable tool for electricians and technicians. Its fused inputs, voltage spike handling, reverse polarity safeguards, and durable design work together to prevent damage and ensure safety.
